Important note: Before setting up your Evo 150 for the first time, please make sure that the USB Audio connection is unplugged. USB Audio can be re-connected once any firmware updates are applied.
Note: No extra drivers are required when using a Mac.
How-to guide

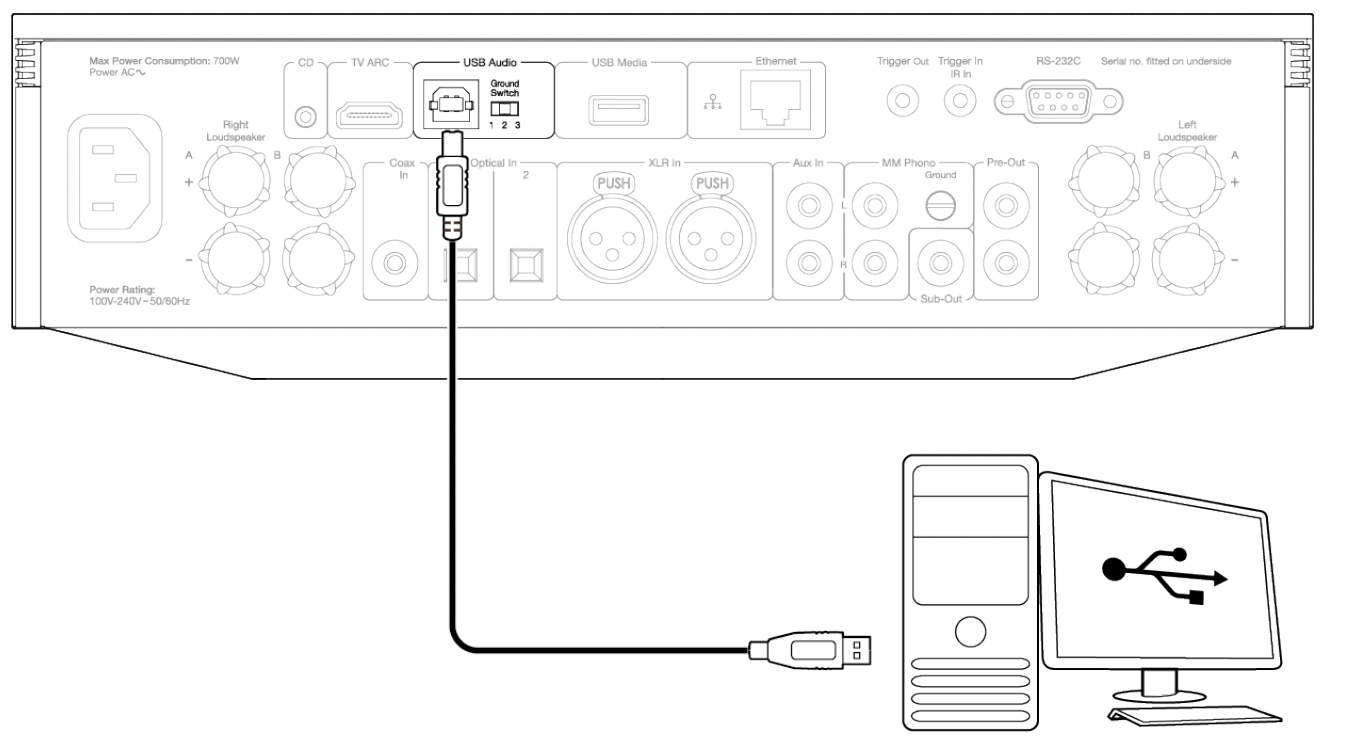

1. Connect your EVO 150 to your Mac
Using a USB Audio cable (Type A to Type B), connect the USB Audio In on your EVO to a USB port on the Mac.
Note: If using a Mac without a USB Type-A port, you may also use a USB Type C (Thunderbolt 3) to USB Type B connection.
2. Select the USB Audio source
This can be done using the source selector on the front of the EVO 150, or by going to the Home tab and then selecting USB Audio within the Sources section of the StreamMagic app.
3. Switch the USB Class
Using the StreamMagic app, go to the Home tab, locate the EVO 150 Settings > USB Audio Class > then toggle between USB Audio Class 1.0 or 2.0.
4. Within the System Preferences of the Mac, locate the Sound settings
Select the EVO 150 as the output sound device.
5. On the Mac navigate to Applications > Utilities > Audio MIDI Setup
Select the EVO 150 as the output sound device on the left column, and then using the drop-down options select the desired bit depth and sample rate preference.
6. Your Mac’s output will now playback via the EVO 150
