Balanced stereo connections:

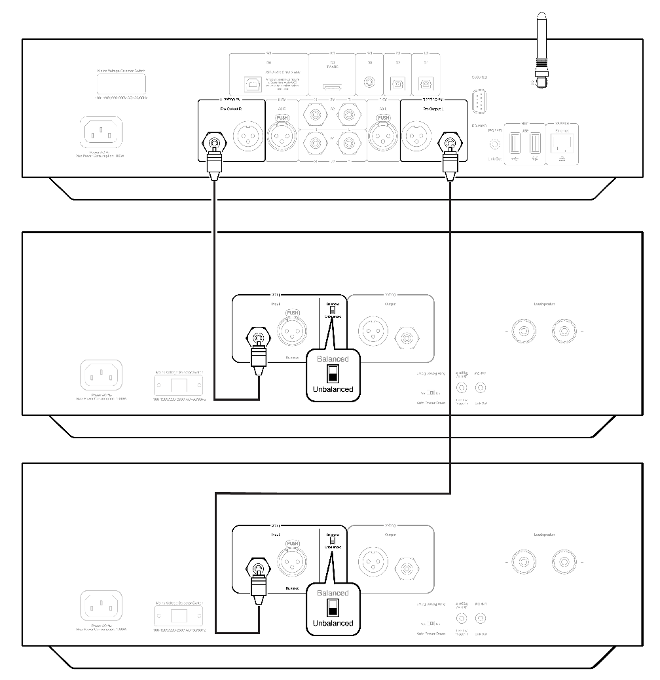

The diagram shows a basic balanced stereo connection between two EDGE M amplifiers and the EDGE NQ. In this stereo connection each Edge M drives one speaker.
The Balanced/Unbalanced switch on the Edge M must be switched to the ‘Balanced’ position.
Unbalanced stereo connections:
The diagram shows a basic unbalanced stereo connection between two EDGE M amplifiers and the EDGE NQ. In this stereo connection, each Edge M drives one speaker.
The Balanced/Unbalanced switch on the Edge M must be switched to the ‘Unbalanced’ position.
