How do I set USB Audio Class 2?

June 20, 2024 14:29 Updated

How-to guide

1. Put the CXA in standby mode

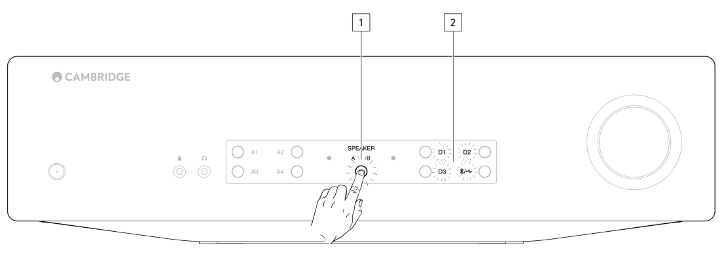

2. press and hold the Speaker A/B button until the A/B lights flash alternatively and the sources A1-A4 light up.

image (15).png

Note: Press the Speaker A/B button once to leave the Setup menu and place the CXA back into Standby mode.

3. Make sure light A4 is on

That puts CXA in USB Audio Class 2 mode.

4. To save the setup settings and exit the setup menu, press the Speaker A/B button

image (16).png
