How do I install the SX-70?

April 01, 2024 14:03

How-to guide

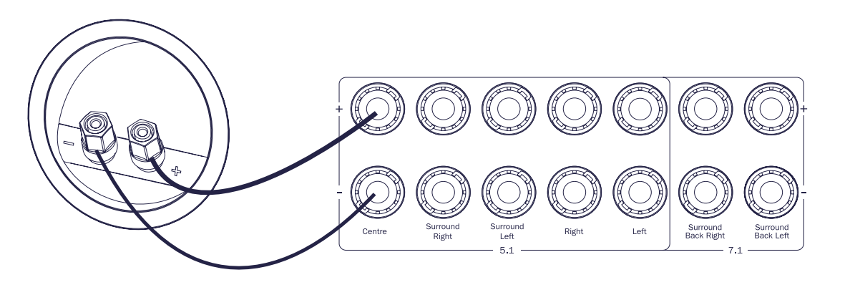

1. Using high quality speaker cable connect the SX-70 centre speaker to the speaker terminals on your amplifier

Ensure that you pay close attention to match the polarity of each connection.

image (42).png

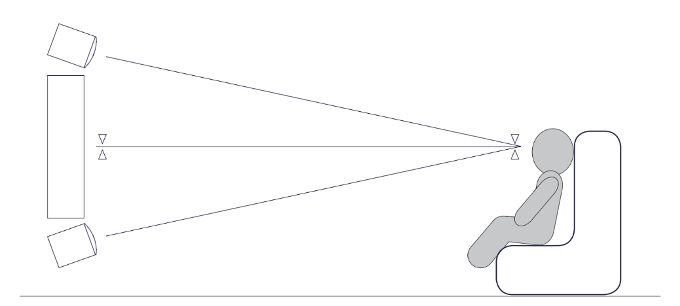

2. For the best results we would recommend positioning the SX-70 center speaker above or below the screen, angled towards the listener if possible

image (43).png

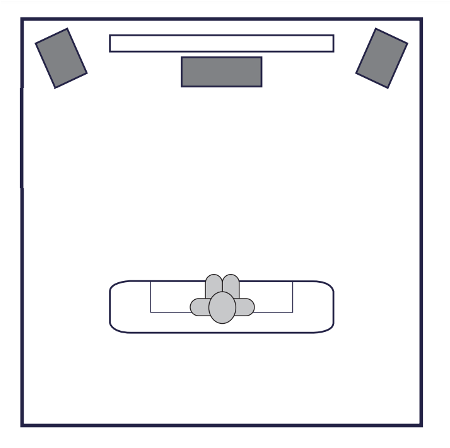

3. Ideally the speakers and listening position should be placed equal distances apart, however, we encourage you to experiment until you find a placement that suits your space and requirements

image (44).png
