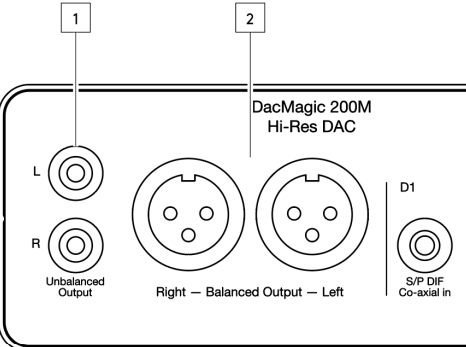

- Unbalanced audio outputs
- Balanced audio outputs

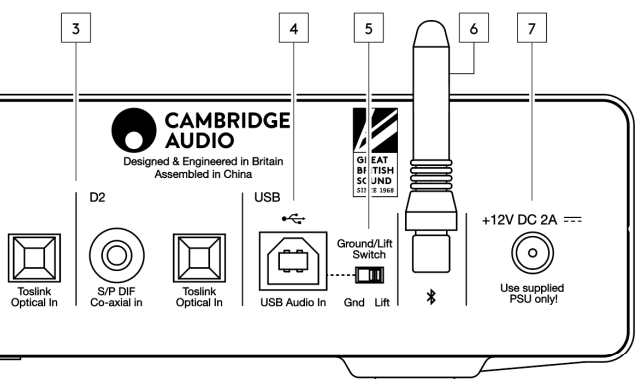

- Digital inputs 1 and 2
- USB Audio In
For connecting to PC/MAC computers.
Note: Class 2 USB Audio only. Windows-based PCs require a Cambridge Audio USB driver to be installed before connection - Ground/Lift Switch
Ground – This is the default position if no issues are experienced with USB connection. USB host and DacMagic 200M use a common ground for highest link reliability.
Lift – Lifting the USB host ground can be useful if electronic hum is heard through the speakers. The switch should otherwise be left in the Ground
position. - Bluetooth Antenna
- DC 12V 2.0A power adaptor socket.
